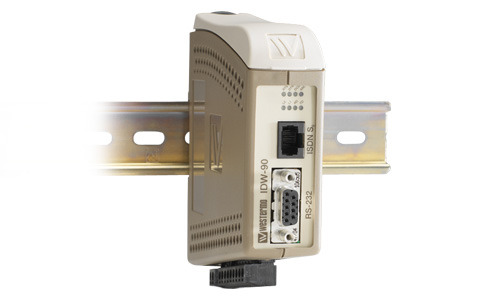

IDW-90是一种工业级IDSN调制解调器，专为高性价比地远程访问传统串行工业设备设计。AT命令驱动调制解调器能够同步一系列传统调制解调器协商标准，提供高达128 kbit/s的数据传输速率。
| Product description | |
| Status | Active |
| Article number | 3620-0001 |
| Ports |
1 x RS-232 1 x RS-422/485 1 x ISDN |
| Description | Industrial ISDN Modem |
| Warranty period | 5 Years |
| Standard compliance | |
| ISDN | TBR-3 |
| Reliability prediction | |
| Service life, operating | Operating, 10 year |
| EMC (Electromagnetic Compatibility) | |
| EN 61000-6-2 | Immunity industrial environments |
| EN 55024 | Immunity IT equipment |
| EN 61000-6-3 | Emission residential environments |
| FCC part 15 | Class B |
| EN 50121-4 | Railway signalling and telecommunications apparatus |
| IEC 62236-4 | Railway signalling and telecommunications apparatus |
| EMC specifications | |
| EN 61000-4-2, ESD |
Enclosure contact, ± 6 kV Enclosure air, ± 8 kV |
| IEC 61000-4-3, RF field AM modulated |
Enclosure: 10 V/m 80% AM (1 kHz), 80 – 1 000 MHz 20 V/m 80% AM (1 kHz), 80 – 2 000 MHz |
| ENV 50204, RF field 900 MHz | Enclosure, 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz |
| EN 61000-4-4, fast transients |
Signal ports, ± 2 kV Power ports, ± 2 kV |
| EN 61000-4-5, surge |
Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports ± 2 kV line to earth, ± 2 kV line to line |
| EN 61000-4-6, conducted RF immunity |
Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz |
| EN 61000-4-8, power frequency magnetic field | Enclosure, 100 A/m, 50 Hz, 16.7 Hz & 0 Hz |
| EN 61000-4-9, pulsed magnetic field | Enclosure, 300 A/m, 6.4 / 16 ms pulse |
| EN 61000-4-16, Mains freq. 50 Hz | Signal ports, 100 V 50 Hz line to earth |
| SS 436 15 03, Mains freq. 50 Hz | Signal ports, 250 V 50 Hz line to line |
| EN 61000-4-29, voltage dips and interruption |
DC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 10 ms, 60% reduction+20% above & –20% below rated voltage |
| EN 55022, radiated RF emission | Enclosure, class B |
| FCC part 15, radiated RF emission | Enclosure, class B |
| EN 55022, conducted emission | DC power ports, class B |
| Safety | |
| EN 60950-1, dielectric strength |
Signal port to other isolated ports, 2 kVrms 50 Hz 1 min Power port to other isolated ports 3 kVrms 50 Hz 1 min 2 kVrms 50 Hz 1 min (@ rated power <60 V) |
| Safety | EN 60950-1, IT equipment |
| Climatic | |
| Temperature, operating | +5 to +55ºC (+41 to +131ºF) |
| Temperature, storage | –20 to +85ºC (–13 to +185ºF) |
| Humidity, operating | 5 to 95% relative humidity |
| Humidity, storage | 5 to 95% relative humidity |
| Enclosure | |
| Enclosure | UL 94, PC / ABS, flammability class V-1 |
| Dimensions (W x H x D) | 34 x 123 x 121 mm (1.33 x 4.84 x 4.76) |
| Weight | 0.21 kg |
| Degree of protection | IP 21 |
| Cooling | Convection |
| Mounting | Horizontal on 35 mm DIN-rail |
| Mechanical | |
| IEC 60068-2-6, vibration | Operating, 7.5 mm, 5 – 8 Hz 2 g, 8 – 500 Hz |
| IEC-60068-2-27, shock | Operating, 15 g, 11 ms |
| Interface specifications, power | |
| Rated voltage |
12 to 48 VDC 12 to 34 VAC |
| Operating voltage |
10 to 60 VDC 10 to 42 VAC |
| Rated current |
110 mA @ 12 VDC 55 mA @ 24 VDC 30 mA @ 48 VDC |
| Rated frequency | DC / AC 48 – 62 Hz |
| Inrush current | 0.22 A2s |
| Startup current | 0.30 Apeak |
| Polarity | Polarity independent |
| Isolation to | All other ports 3 kVrms 50 Hz 1 min |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Shielded cable | Not required |
| Integrated Services Digital Network (ISDN) | |
| Electrical specification | ISDN BRI: ITU-T I.430 |
| Data rate | 300 bit/s – 128 kbit/s |
| Protocol |
Euro ISDN /DSS1, Leased line B1 / B2 V.110 asynchronous, HDLC async to sync, HDLC transparent, Byte transparent X.75- SLP, V.120, X.31 B channel, X.31 D channel, ML-PPP |
| Protection | Installation Fault Tolerant (up to ±60 V) |
| Isolation to |
Power port 3 kVrms 50 Hz 1 min RS-232 2 kVrms 50 Hz 1 min RS-485 2 kVrms 50 Hz 1 min I/O 2 kVrms 50 Hz 1 min |
| Connection | RJ-45 |
| Shielded cable | Not required |
| Interface specifications, RS-232 | |
| Electrical specification | EIA/TIA-232 |
| Data rate | 1 200 bit/s – 115.2 kbit/s |
| Data format | 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits; Σ 9 – 12 bits |
| Protocol | Transparent |
| Retiming | Yes |
| Transmission range | Cable length ≤15 m / 49 ft |
| Isolation to |
Power port 3 kVrms 50 Hz 1 min ISDN line 2 kVrms 50 Hz 1 min I/O 1.5 kVrms 50 Hz 1 min |
| Galvanic connection to | RS-485 |
| Connection | 9-pin D-sub female (DCE) |
| Shielded cable | Not required |
| Miscellaneous | Do not connect RS-232 and RS-422/485 simultaneously |
| Interface specifications, RS-422/485 | |
| Electrical specification |
EIA RS-485 2-wire or 4-wire twisted pair |
| Data rate | 300 bit/s to 115.2 kbit/s |
| Data format | 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits, Σ 9 – 12 bits |
| Protocol | Transparent |
| Retiming | Yes |
| Turning time | 50 μs (half duplex) |
| Transmission range | <1200 m, depending on data rate and cable type (EIA RS-485) |
| Settings | 120 Ω termination and failsafe biasing 680 Ω |
| Protection | Installation Fault Tolerant (up to ±60 V) |
| Isolation to |
Power port 3 kVrms 50 Hz 1 min ISDN 2 kVrms 50 Hz 1 min I/O 2 kVrms 50 Hz 1 min |
| Galvanic connection to | RS-232 |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Shielded cable | Not required |
| Miscellaneous | Do not connect RS-232 and RS-422/485 simultaneously |
| Interface specifications, I/O / Digital input | |
| Electrical specification | Opto isolated input |
| Input voltage range | 0 – 60 VDC |
| Input current | 5 mA @ 60 VDC |
| Input inactive | Uin <2.5 V |
| Input active | Uin >5.0 V |
| Transmission range | Cable Length ≤ 15 m |
| Connection | Detachable screw terminal (DCE) |
| Connector size | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Isolation to |
Power port 3 kVrms 50 Hz 1 min ISDN line 2 kVrms 50 Hz 1 min RS-232 2 kVrms 50 Hz 1 min RS-485 2 kVrms 50 Hz 1 min I/O output 2 kVrms 50 Hz 1 min |
| Shielded cable | Not required |
| Interface specifications, I/O relay output | |
| Electrical specification | One change over contact |
| Switching voltage | Max 40 VAC/DC |
| Switching current | Max 500 mA AC/DC |
| Electrical endurance | 5 x 105 operations @ 20 W / 20 VA Resistive load |
| Transmission range | Cable Length ≤15 m |
| Connection | Detachable screw terminal (DCE ) |
| Connector size | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Isolation to |
Power port 3 kVrms 50 Hz 1 min ISDN line 2 kVrms 50 Hz 1 min RS-232 1.5 kVrms 50 Hz 1 min RS-485 1.5 kVrms 50 Hz 1 min I/O input 2 kVrms 50 Hz 1 min |
| Shielded cable | Not required |
