| Product description | |
| Status | Active |
| Article number | 3622-0201 |
| Ports |
1 x 10 Mbit/s or 100 Mbit/s., Ethernet TX, RJ-45. 1 x 300 bit/s to 115.2 kbit/s, D-sub, RS-232. 2 x SIM slots. 1 x USB. |

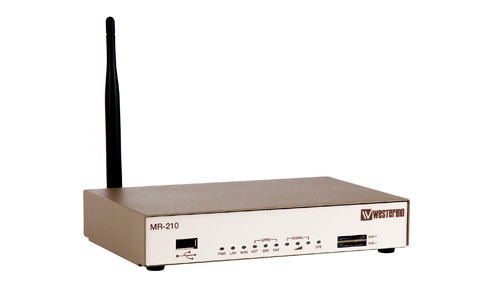

| Description | Mobile broadband router |
| Warranty period | 5 Years |
| Standard compliance | |
| R&TTE |
Article 3.1a: EN 60950, Safety EN 50385, EMF exposure Article 3.1b: EN 301 489-1, ERM/EMC EN 301 489-7, ERM/EMC GSM EN 301 489-24, ERM/EMC 3G Article 3.2: EN 301 908-1, ERM 3G EN 301 908-2, ERM 3G EN 301 511, GSM |
| Reliability prediction | |
| MTBF, operating | 203 000 hours, Bellcore RQGR at 40°C |
| EMC (Electromagnetic Compatibility) | |
| EN 55024 | Electromagnetic compatibility - Immunity IT equipment |
| EN 55024 + A1 + A2 | Electromagnetic compatibility - Immunity IT equipment |
| EN 55022 | Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement. |
| EN 55022 +A1 | Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement. |
| FCC part 15 | Class B |
| EMC specifications | |
| EN 61000-4-2, ESD |
Enclosure contact, ± 4 kV Enclosure air, ± 8 kV |
| IEC 61000-4-3, RF field AM modulated | Enclosure, 3 V/m 80% AM (1 kHz), 80 – 1 000 MHz, 1 400 MHz – 2 000 |
| EN 61000-4-4, fast transients |
Signal ports, ± 0.5 kV Power ports, ± 1 kV |
| EN 61000-4-5, surge |
Telecom/Signal ports, ± 0.5 kV line to earth Power ports, ± 2 kV line to earth, ± 2 kV line to line |
| EN 61000-4-6, conducted RF immunity | Power ports, 3V/m 80% AM (1 kHz), 0.15 – 80 MHz |
| EN 61000-4-11, Voltage dips and interruption |
AC power ports: 10 & 100 ms, interruption 10 ms, 30% reduction 100 ms, 60% reduction 5000 ms, >95% reduction +30% above & –20% below rated voltage |
| EN 55022, radiated RF emission | Enclosure, class B |
| FCC part 15, radiated RF emission | Enclosure, class B |
| EN 55022, conducted emission |
AC power ports, class A DC power ports, class B |
| FCC part 15, conducted emission | AC power ports, class B |
| Safety | |
| Safety | UL/IEC/EN 60950-1, IT equipment |
| Climatic | |
| Temperature, operating | –20 to +60ºC (–4 to +140ºF) |
| Temperature, storage | –40 to +85ºC (–40 to +185ºF) |
| Humidity, operating | 5 to 95% relative humidity |
| Humidity, storage | 5 to 95% relative humidity |
| Enclosure | |
| Enclosure | Pressed steel |
| Dimensions (W x H x D) | 173 x 36 x 119 mm (6.8 x 1.4 x 4.7 in) |
| Weight | 0.9 kg |
| Degree of protection | IP 40 |
| Cooling | Convection |
| Mounting | Horizontal on 35 mm DIN-rail or flat on level surface |
| Interface specifications, power | |
| Rated voltage | 9 – 48 VDC |
| Operating voltage | 9 – 48 VDC |
| Rated current | 1500 mA @ 12 VDC |
| Rated frequency | DC |
| Interface specifications, RS-232 | |
| Electrical specification | EIA/TIA-232 |
| Data rate | 300 bit/s – 115.2 kbit/s |
| Data format | 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits |
| Protocol | Transparent, optimised by packing algorithm |
| Retiming | Yes |
| Transmission range | 15 m / 49 ft |
| Connection | RJ 45 |
| Shielded cable | Not required |
| Number of ports | 1 |
| Interface specifications, 10/100BaseTX | |
| Electrical specification | IEEE std 802.3. 2005 Edition |
| Data rate | 10 Mbit/s, 100 Mbit/s, manual or auto |
| Duplex | Full or half, manual or auto |
| Circuit type | SELV |
| Transmission range | 100 m / 328 ft |
| Isolation to | All other |
| Connection | RJ-45 auto MDI/MDIX |
| Shielded cable | Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails. |
| Conductive housing | Yes |
| Number of ports | 1 |
| Interface specifications, Antenna | |
| Frequency bands | 850 MHz – 2100 MHz |
| Connection | SMA female, impedance: 50 ohm |
| Interface specification, SIM | |
| Electrical specification | 3 volts SIM supported |
| Number of slots | 2 |
| Interface specifications, USB | |
| Electrical specification | USB 2.0 host interface |
| Data rate | Up to 12 Mbit/s (full-speed mode) |
| Circuit type | SELV |
| Maximum supply current | 500 mA in total for both ports |
| Connection | USB receptacle connector type A |
| Number of ports | 1 |
