管理型防爆串口设备联网交换机

L105-S1-EX

阅读更多

WeOS

Protocols and functionality
Serial port technology	Modem Replacement, Modbus Gateway, PPP dial in/dial out and Serial over IP
Resiliency and high availability	Fast Reconfiguration of Network Topology (FRNT)   FRNT ring coupling   Multilink dual homing   IEEE 802.1D (STP) and IEEE 802.1w (RSTP)   IEEE 802.1AX/802.3ad Link Aggregation
Layer 2 switching	IEEE 802.1Q Static VLAN and VLAN Tagging   IEEE 802.3x Flow Control   IGMPv2/v3 snooping   AVT Dynamic VLAN (Adaptive VLAN Trunking)   Management VLAN (Management Interface concept)   Static Multicast MAC filters
Layer 2 QoS	IEEE 802.1p Class of Service
Layer 2 security	IEEE 802.1X Port Access Control   MAC Authentication
Manageability	Management tools   • Web interface (HTTP and HTTPS or CLI (SSHv2 or Telnet)   • SNMPv1/v2c/v3   • Flexible management of configuration and log files   Flexible alarm/event handling system   USB Fluid configuration (Available for products with USB port)   Digital I/O and Flexible alarm/event handling system   Syslog (log files and remote syslog server)   Port Monitoring   SNTP (NTP client)   PPPoE client   DHCP client   DHCP server including option 82   DHCP relay agent including option 82   DDNS
SNMP MIB support	RFC1213 MIB-2   RFC2863 Interface MIB (ifXTable)   RFC2819 RMON MIB (etherStatsTable)   RFC4188 Bridge MIB   RFC4318 RSTP MIB   RFC4363 Q-BRIDGE MIB   RFC4836 MAU MIB   RFC4133 Entity MIB (entityPhysical)   RFC4319 HDSL2/SHDSL MIB   RFC3433 Entity Sensor MIB   RFC3621 Power Ethernet MIB   WESTERMO PRIVATE MIB

Download Dimensional Drawing PDF

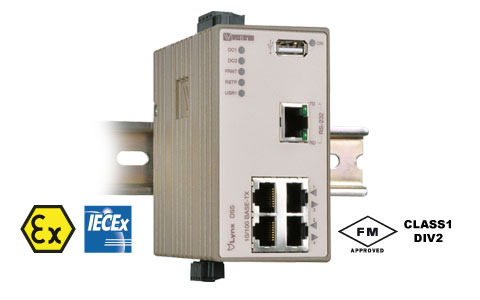

L105-S1-EX

Product description
Status	Active
Article number	3643-5210
Ports	4 x 10/100 Mbit/s, Ethernet TX, RJ-45.    1 x Digital I/O.   1 x RS-232, RJ-45.   1 x USB.
Description	Managed EX approved Device Server Switch
Warranty period	5 years
Approvals
Marine	DNV Standard for Certification no. 2.4
Hazardous locations	EN 60079-0 and EN 60079-15
EMC (Electromagnetic Compatibility)
EN 61000-6-1	Immunity residential environments
EN 61000-6-2	Immunity industrial environments
EN 61000-6-3	Emission residential environments
EN 61000-6-4	Emission industrial environments
EN 55022 +A1	Emission IT equipment
EN 55024 + A1 + A2	Immunity IT equipment
FCC part 15	Class B
EN 50121-4	Railway signalling and telecommunications apparatus
IEC 62236-4	Railway signalling and telecommunications apparatus
EMC specifications
EN 61000-4-2, ESD	Contact: ±6 kV   Air: ±8 kV
EN 61000-4-4, fast transients	Power port: ±2 kV   Ethernet: ±2 kV   Status out/Digital in: ±2 kV   Serial ports: ±2 kV   Enclosure: ±2 kV
EN 61000-4-5, surge	Power port   L-L: ±0.5 kV, 2 Ω, 18 μF   L-E: ±2 kV, 42 Ω, 0.5 μF   L-L: ±1 kV, 42 Ω, 0.5 μF   L-E: ±2 kV, 12 Ω, 9 μF   L-L: ±1 kV, 12 Ω, 9 μF   Ethernet   L-E: ±2 kV, 2Ω, 0.5 μF   Status out/Digital in   L-E: ±2 kV, 42 Ω, 0.5 μF   L-L: ±1 kV, 42 Ω, 0.5 μF   RS-232   L-E: ±2 kV, 2 Ω, 0.5 μF   RS-422/485   L-E: ±2 kV, 42 Ω, 0.5 μF
EN 61000-4-8, power frequency magnetic field	300 A/m; 0, 16.7, 60 Hz   1000 A/m; 50 Hz
EN 61000-4-9, pulsed magnetic field	300 A/m
EN 61000-4-3, radiated RF immunity	20 V/m @ (80 – 2700) MHz   1 kHz sine, 80% AM
EN 61000-4-6, conducted RF immunity	Power port: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz   Ethernet: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz   Status out/Digital in: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz   Serial ports: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz   Earth port: 10 V, 80% AM, 1 kHz; (0.15 – 80) MHz
EN 55022, radiated RF emmision, FCC Part 15/ DNV 2.4	EN 55022/FCC Part 15/DNV 2.4, Class B / DNV bridge
EN 55022, conducted RF emmision, FCC Part 15/ DNV 2.4	EN 55022/FCC Part 15/DNV 2.4, Class B / DNV bridge
DNV 2.4, compass safe distance	Standard compass (5.4°/H deviation) = 15 cm   Steering/standby steering/emergency compass (18°/H deviation) = 10 cm
Safety
Safety	UL/IEC/EN 60950-1, IT equipment
EN 60950-1, dielectric strength	Power port to all other ports: 1.5 kVrms, 50 Hz, 1 min   Ethernet ports to all other ports: 1.5 kVrms, 50 Hz, 1 min   RS-232 port to all other ports: 1.5 kVrms, 50 Hz, 1 min   RS-422/485 port to all other ports: 1.5 kVrms, 50 Hz, 1 min
Reliability prediction
MTBF, operating	677 000 h (MIL-HDBK-217F (Gb) 25°C)
Service life, operating	10 years
Climatic
Temperature, operating	–40 to +70°C (–40 to +158°F)
Temperature, storage	–50 to +85°C (–58 to +185°F)
Humidity, operating	5 to 95 % relative humidity
Humidity, storage	5 to 95 % relative humidity
Enclosure
Enclosure	Fire enclosure
Dimensions (W x H x D)	52.5 x 100 x 101 mm
Weight	0.7 kg
Degree of protection	IP 40
Cooling	Convection
Mounting	Horizontal on 35 mm DIN-rail
Mechanical
IEC 60068-2-6, vibration	IEC 60068-2-6,(sine), operating   3 – 13.2 Hz: 1mm   13.2 – 100 Hz: 0.7 g   5.5 – 30 Hz: 1.5 g   30 – 50 Hz: 0.42 mm   50 – 500 Hz: 4.2 g   IEC 60068-2-64 (random), operating   5 – 20 Hz: 2 m²/s³,   20 – 2000 Hz: – 3 dB/oct
IEC-60068-2-27, shock	Operating:   30 g, 11 ms   100 g, 6 ms**
IEC 60068-2-27, bump	Operating:   10 g, 11 ms
Interface specifications, power
Operating voltage	Rated: 24 to 48 VDC   Operating: 19 to 60 VDC
Rated current	250 mA (380 mA) @ 24 VDC (with 500 mA USB load)   120 mA (188 mA) @ 48 VDC (with 500 mA USB load)
Rated frequency	DC
Inrush current	22.7·10-3 A2s @ 48 VDC
Startup current	2 x Rated current
Polarity	Reverse polarity protected
Redundant power input	Yes
Isolation to	All other
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm2 (AWG 24 – 12)
Shielded cable	Not required
Interface specifications, 10/100BaseTX
Electrical specification	IEEE std 802.3. 2005 Edition
Data rate	10 Mbit/s, 100 Mbit/s, manual or auto
Duplex	Full or half, manual or auto
Circuit type	TNV-1
Transmission range	Up to 150 m with CAT5e cable or better*
Isolation to	All other
Connection	RJ-45, auto MDI/MDI-X
Cabling	Shielded CAT5e or better is recommended
Conductive housing	Yes
Number of ports	4
Interface specifications, RS-232
Electrical specification	EIA RS-232
Data rate	300 bit/s – 115.2 kbit/s
Data format	7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits
Protocol	Transparent, optimised by packing algorithm
Circuit type	SELV
Transmission range	15 m / 49 ft
Isolation to	All other
Connection	RJ-45 according to EIA-561
Shielded cable	Recommended
Conductive housing	Yes
Number of ports	1
Interface specifications, I/O relay output
Maximum voltage / current	60 VDC / 80 mA
Connect resistance	Max 30 Ω
Isolation to	All other
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm2 (AWG 24 – 12)
Interface specifications, I/O Digital output
Maximum volt / current	60 VDC / 2 mA
Voltage_levels	Logic one: >12V   Logic zero: <1V
Isolation to	All other
Connection	Detachable screw terminal
Connector size	0.2 – 2.5 mm2 (AWG 24 – 12)
Interface specifications, USB
Electrical specification	USB 2.0 host interface
Data rate	Up to 12 Mbit/s (full-speed mode)
Circuit type	SELV
Maximum supply current	500 mA
Connection	USB receptacle connector type A
Interface specifications, console
Electrical specification	LVTTL/LVCMOS-level
Data rate	115.2 kbit/s
Data format	8 data bits, no parity, 1 stop bit, no flow control
Circuit type	SELV
Connection	2.5 mm jack, use only Westermo cable 1211-2027
