| Protocols and functionality | |
| Serial port technology |
Serial Over IP (Serial Extender and Virtual Serial Port) Modem Replacement Modbus Gateway |
| Resiliency and high availability |
Fast Reconfiguration of Network Topology (FRNT) FRNT Link Health Protocol (FLHP) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid STP (RSTP) |
| Layer 2 switching |
IEEE 802.1Q Static VLAN and VLAN Tagging IEEE 802.3x Flow Control IGMPv2/v3 snooping AVT Dynamic VLAN (Adaptive VLAN Trunking) Management VLAN (Management Interface concept) Static Multicast MAC filters |
| Layer 2 QoS |
IEEE 802.1p Class of Service Classification: VLAN tag, VLAN ID, IP DSCP/ToS, Port ID |
| Layer 2 security |
IEEE 802.1X Port Access Control MAC Authentication |
| Manageability |
Management tools • Web interface (HTTP and HTTPS) • CLI via console port and SSHv2 and Telnet • Westermo IPConfig tool • SNMPv1/v2c/v3 • Flexible management of configuration and log files • Secure Copy (SCP) • Local file management via HTTP, FTP, TFTP and SCP • Load/save files from/to USB memory stick Flexible alarm/event handling system Syslog (log files and remote syslog server) Digital I/O Port Monitoring SNTP (NTP client) PPPoE client DHCP client DHCP relay agent (DHCP option 82) DDNS |
| SNMP MIB support |
RFC1213 MIB-2 RFC2863 Interface MIB (ifXTable) RFC2819 RMON MIB (etherStatsTable) RFC4188 Bridge MIB RFC4318 RSTP MIB RFC4363 Q-BRIDGE MIB (dot1qVlan and dot1qVlanStaticTable) RFC4836 MAU MIB (dot3IfMauBasicGroup and dot3IfMauAutoNegGroup) RFC4133 Entity MIB (entityPhysical) RFC3433 Entity Sensor MIB WESTERMO PRIVATE MIB |
| Product description | |
| Status | Active |
| Article number | 3642-0310 |
| Ports |
Ethernet TX: 2 x RJ-45, 10 Mbit/s, 100 Mbit/s, manual or auto SHDSL: 2 x 2-position detachable screw terminal RS-422/485: 1 x 4-position detachable screw terminal, 50 bit/s – 2 Mbit/s Digital I/O: 1 x 4-position detachable screw terminal |

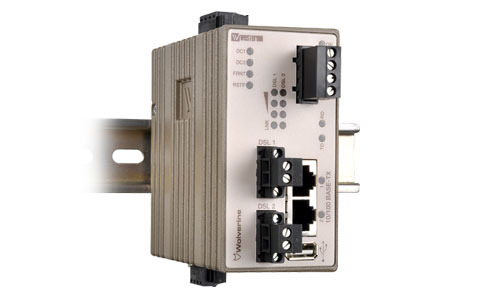

| Description | Industrial Ethernet Extender |
| Warranty period | 5 Years |
| Reliability prediction | |
| MTBF, operating | 435 000 h (MIL-HDBK-217F (Gb) 25°C) |
| Service life, operating | Operating, 10 years |
| EMC (Electromagnetic Compatibility) | |
| EN 55024 + A1 + A2 | Electromagnetic compatibility - Immunity IT equipment. |
| EN 55022 +A1 |
Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement. |
| EN 61000-6-1 | Immunity residential environments. |
| EN 61000-6-2 | Immunity industrial environments. |
| EN 61000-6-4 | Emission industrial environments. |
| EN 61000-6-3 | Emission residential, commercial and light-industrial environments. |
| FCC part 15 | Class A and Class B. |
| EN 50121-4 | Railway signalling and telecommunications apparatus. |
| IEC 62236-4 | Railway signalling and telecommunications apparatus. |
| EMC specifications | |
| EN 61000-4-2, ESD |
Enclosure: Contact: ± 6 kV Air: ± 8 kV |
| EN 61000-4-4, fast transients |
Power port, ± 2 kV Ethernet ports, ± 2 kV SHDSL ports, ± 2 kV RS-232 port, ± 2 kV Status out / Digital in, ± 2 kV Earth port, ± 1 kV |
| EN 61000-4-5, surge |
Power port: L-L: ±0.5 kV, 2 Ω, 18 μF L-E: ±0.5 kV, 12 Ω, 9 μF L-E: ±2 kV, 42 Ω, 0.5 μF L-L: ±1 kV, 42 Ω, 0.5 μF Ethernet ports, L-E: ±2 kV, 2 Ω SHDSL ports, L-E: ±2 kV, 42Ω, 0.5 μF RS-232 port, L-E: ±2 kV, 2 Ω Status out / Digital in, L-E: ±2 kV, 42Ω, 0.5 μF |
| EN 61000-4-9, pulsed magnetic field | Enclosure, 300 A/m |
| EN 61000-4-3, radiated RF immunity |
Enclosure: 20 V/m 80% AM, 1 kHz sine, 80 – 1000 MHz 12 V/m 80% AM, 1 kHz sine, 1000 – 2700 MHz |
| EN 61000-4-6, conducted RF immunity |
Power port, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz Ethernet ports, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz SHDSL ports, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz RS-232 port, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz Status out / Digital in, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz Earth port, 10 V, 80% AM, 1 kHz sine; 0.15 – 80 MHz |
| EN 61000-4-29, voltage dips and interruption |
DC Power port: 10, 20 and 5000 ms, interruption 500 ms, 30% reduction 200 ms, 60% reduction +20 above & –20% below rated voltage |
| EN 55022, radiated RF emission | Enclosure, class B |
| FCC part 15, radiated RF emission | Enclosure, class B |
| EN 55022, conducted emission |
Power port, class B Ethernet ports, class B |
| FCC part 15, conducted emission | Power port, class B |
| Safety | |
| Safety | EN 60950-1 |
| EN 60950-1, dielectric strength |
Power port to other isolated ports, 2000 Vrms 50 Hz 1 min Ethernet ports to all other isolated ports, 1500 Vrms 50 Hz 1 min RS-232 port to all other isolated ports, 1500 Vrms 50 Hz 1 min SHDSL ports to all other isolated ports, 1500 Vrms 50 Hz 1 min Status out / Digital in port to all other isolated ports,1500 Vrms 50 Hz 1 min |
| Climatic | |
| Temperature, operating | –40 to +70ºC (–40 to +158ºF) |
| Temperature, storage | –40 to +70ºC (–40 to +158ºF) |
| Humidity, operating | 5 to 95% relative humidity |
| Humidity, storage | 5 to 95% relative humidity |
| Enclosure | |
| Enclosure | EN 60950-1, Zinc (fire enclosure) |
| Dimensions (W x H x D) |
Without connectors, 52.5 x 100 x 92 mm With connectors, 52.5 x 100 x 111 mm |
| Weight | 0.8 |
| Degree of protection | IP 40 |
| Cooling | Convection |
| Mounting | Horizontal on 35 mm DIN-rail |
| Mechanical | |
| IEC 60068-2-6, vibration |
Operating: 5 – 20 Hz: 2 m²/s³ 20 – 500 Hz: – 3 dB/oct 3 axis = 3 * 30 min |
| IEC-60068-2-27, shock |
Operating: 6 ms 1000 m/s² 6 directions, 3 shocks/direction |
| IEC 60068-2-27, bump |
Operating: 11 ms 100 m/s² 6 directions, 100 shocks/direction |
| Interface specifications, power | |
| Rated voltage | 24 to 48 VDC |
| Operating voltage | 19 to 60 VDC |
| Rated current |
245 mA (405 mA) @ 24 VDC (with 500 mA USB load) 124 mA (200 mA) @ 48 VDC (with 500 mA USB load) |
| Rated frequency | DC |
| Inrush current |
10.6 mA²s @ 24 VDC 24.7 mA²s @ 36 VDC 42.4 mA²s @ 48 VDC |
| Startup current | 2 x Rated current |
| Polarity | Reverse polarity protected |
| Redundant power input | Yes |
| Isolation to | All other |
| Connection | Detachable screw terminal |
| Connector size |
0.2 – 2.5 mm² (AWG 24 – 13) Connect the unit using at least 18 AWG (0.75 mm²) wiring |
| Shielded cable | Not required |
| Interface specifications, RS-422/485 | |
| Electrical specification | EIA RS-422/485 |
| Data rate | 50 bit/s – 2 Mbit/s |
| Data format | 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits (2 stop bits only when no parity is set). |
| Transmission range | Up to 1200 m / 0.74 mi, depending on data rate and cable type |
| Isolation to | Power, I/O realay output, I/O Digital input, SHDSL line, Ethernet |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 12) |
| Shielded cable | Not required, but recommended in railway installations close to the rails.* |
| Conductive housing | Yes |
| Interface specifications, 10/100BaseTX | |
| Electrical specification | IEEE std 802.3. 2005 Edition |
| Data rate | 10 Mbit/s, 100 Mbit/s, manual or auto |
| Duplex | Full or half, manual or auto |
| Circuit type | TNV-1 |
| Transmission range | Up to 150 m, with CAT5e cable or better |
| Isolation to | All other |
| Connection | RJ-45, auto MDI/MDIX |
| Shielded cable | Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails. |
| Conductive housing | Yes |
| Number of ports | 2 |
| Interface specifications, console | |
| Electrical specification | LVTTL/LVCMOS-level |
| Data rate | 115.2 kbit/s |
| Data format | 8 data bits, none parity, 1 stop bit, no flow control |
| Circuit type | SELV |
| Connection | 2.5 mm jack, use Westermo cable 1211-2027 |
| Interface specifications, USB | |
| Electrical specification | USB 2.0 host interface |
| Data rate | Up to 12 Mbit/s (full-speed mode) |
| Circuit type | SELV |
| Maximum supply current | 500 mA |
| Connection | USB receptacle connector type A |
| Interface specifications, I/O relay output | |
| Maximum voltage / current | 60 VDC / 80 mA |
| Connect resistance | Max 30 Ω |
| Isolation to | All other |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 13) |
| Interface specifications, I/O / Digital input | |
| Maximum voltage | 60 VDC |
| Load current | 2 mA |
| Voltage levels | Logic one >12 V, Logic zero <1V |
| Isolation to | All other |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 13) |
| Interface specifications, DSL | |
| Electrical specification | ITU-T G.991.2 Annex B |
| Data rate | 192 kbit/s to 30.6 Mbit/s with bonding |
| Protocol | EFM according to IEEE 802.3-2005 |
| Transmission range | According to ITU-T G.991.2 depending on line quality |
| Isolation to | All other |
| Connection | Detachable screw terminal |
| Connector size | 0.2 – 2.5 mm² (AWG 24 – 13) |
| Shielded cable | Not required |
| Number of ports | 2 |
